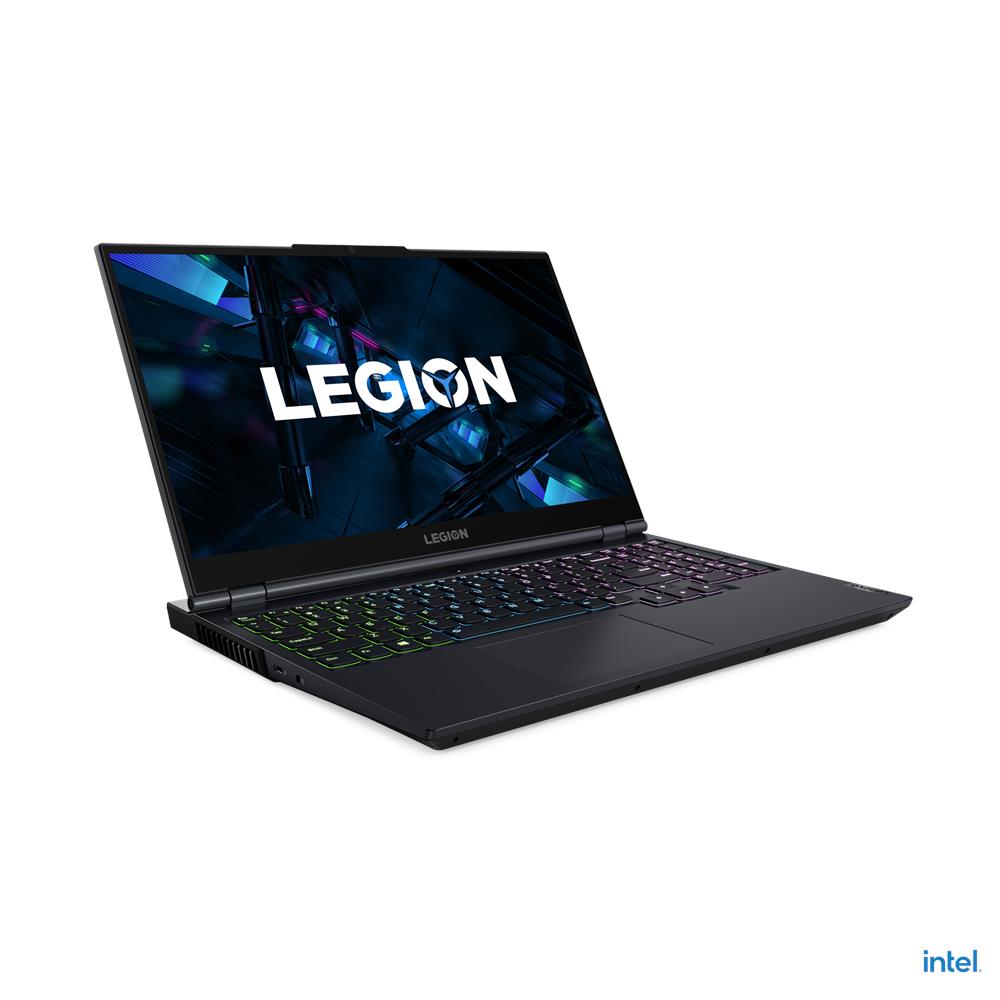

Lenovo Legion 5

Processor :

Intel Core i7-11800H (8C / 16T, 2.3 / 4.6GHz, 24MB)

Graphics :

NVIDIA GeForce RTX 3060 6GB GDDR6, Boost Clock 1425 / 1702MHz, TGP 130W

Chipset :

Intel HM570

Memory :

2x 8GB SO-DIMM DDR4-3200

Memory Slots :

Two DDR4 SO-DIMM slots, dual-channel capable

Max Memory :

Up to 32GB DDR4-3200 offering

Storage :

512GB SSD M.2 2280 PCIe 3.0×4 NV Me

Storage Support :

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB

Card Reader :

None

Optical :

None

Audio Chip :

High Definition (HD) Audio, Realtek ALC3306 codec

Speakers :

Stereo speakers, 2W x2, Nahimic Audio

Camera :

720p with E-camera Shutter

Microphone :

2x, Array

Battery :

Integrated 60Wh

Max Battery Life :

Mobile Mark 2018: 7.5 hr.

Power Adapter :

230W Slim Tip (3-pin)

DESIGN

Display :

15.6″ FHD (1920×1080) IPS 300nits Anti-glare, 165Hz, 100% sRGB, Dolby Vision, G-Sync, DC

Touchscreen :

None

Keyboard :

Backlit, Arabic

Case Color :

Phantom Blue (Top), Shadow Black (Bottom)

Case Material  :

PC + ABS (Top), PC + ABS (Bottom)

Dimensions (W x D x H) :

362.56 x 260.61 x 22.5-25.75 mm (14.27 x 10.26 x 0.89-1.01 inches)

Weight :

2.4 kg (5.3 lbs.)

SOFTWARE

Operating System :

None

Bundled Software :

None

CONNECTIVITY

Ethernet :

100/1000M

WLAN + Bluetooth

Wi-Fi 6 11ax, 2×2 + BT5.1

Standard Ports :

3x USB 3.2 Gen 1

1x USB 3.2 Gen 1 (Always On)

1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 1.4)

1x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery and DisplayPort 1.4)

1x HDMI 2.1

1x Ethernet (RJ-45)

1x Headphone / microphone combo jack (3.5mm)

1x Power connector

SECURITY & PRIVACY

Security Chip :

Firmware TPM 2.0

Fingerprint Reader :

None

Warranty :

1-year
